WATERPROOFING SYSTEM FOR WATER TANK

How to prevent water-leakage from water tank

Problem

The structural damage

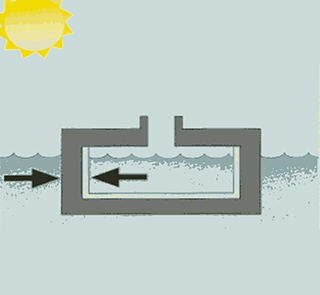

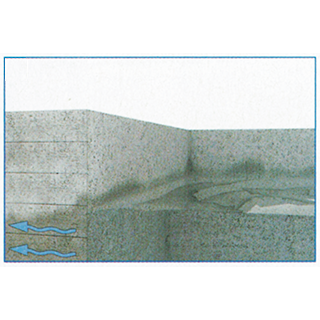

Very often after few months of service, water tank starts to leak because of the underground water pressure during rainy season. If there is a crack, underground water and the soluble salts will infiltrate and cause the structural damage.

The materials cannot assure the waterproof

The materials used to build water tanks cannot assure the waterproof property.

Structure of water tank cannot be completely rigid

Properly designed structure of water tank cannot be expected to be completely rigid. Water ingress can be likely when there is slight structural movement.

The waterproof product supports drinking water.

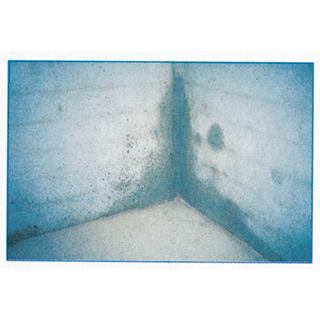

Surfaces of water tank can be damage and moldy from moisture. It is therefore strongly recommended that the waterproofing product in used has to be compatible with drinking water.

Install a proper waterproofing system

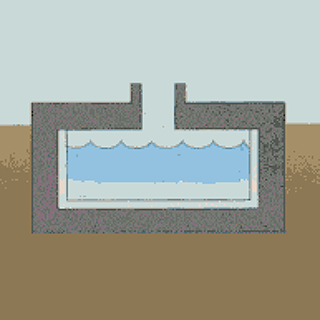

Not only properly designed structure is needed for building a water tank, but also a decent waterproofing system in order to prevent water pressure from both underground (negative) and inside the tank (positive). This is because to fix the leakage can be significant more expensive than to install a proper waterproofing system.

Solution

Apply waterproofing system both inside and outside of water tanks.
weberdry tex performs the resistant property both to positive and negative water pressures and also compatibility to drinking water.

SUBSTRATE PREPARATION

In case of new concrete surface, it should be fully cured for approximately 28 days in order to ensure the proper strength.
Clean off the surface with high-pressure water jet.

Fix the cracks or damages with repair mortar.

Volume of water tank should be 4 times bigger than the waterproofed area (the ratio of area per volume is less than 0.25).

APPLICATION

Apply waterproofing system inside the water tanks.
Thoroughly dampen the surfaces
Apply 2 coats of weberdry tex, the 2nd coat has to be perpendicular to the 1st one, onto internal surfaces.

Any water tank below ground should also be waterproofed at the external structure.
Apply 2 coats of weberdry tex, the 2nd coat has to be perpendicular to the 1st one.
