Small size swimming pool < 200 sq m. (on high-rise building) Ceramic/Clay/Glassed clay/Mosaic ceramic/Granito/Granite/Marble/Natural stone

Prepare waterproofing system before tiling : Choose the right product which resist to positive and negative water pressure
Tiling in swimming pool : Tile adhesive and tile grout for small size swimming pool

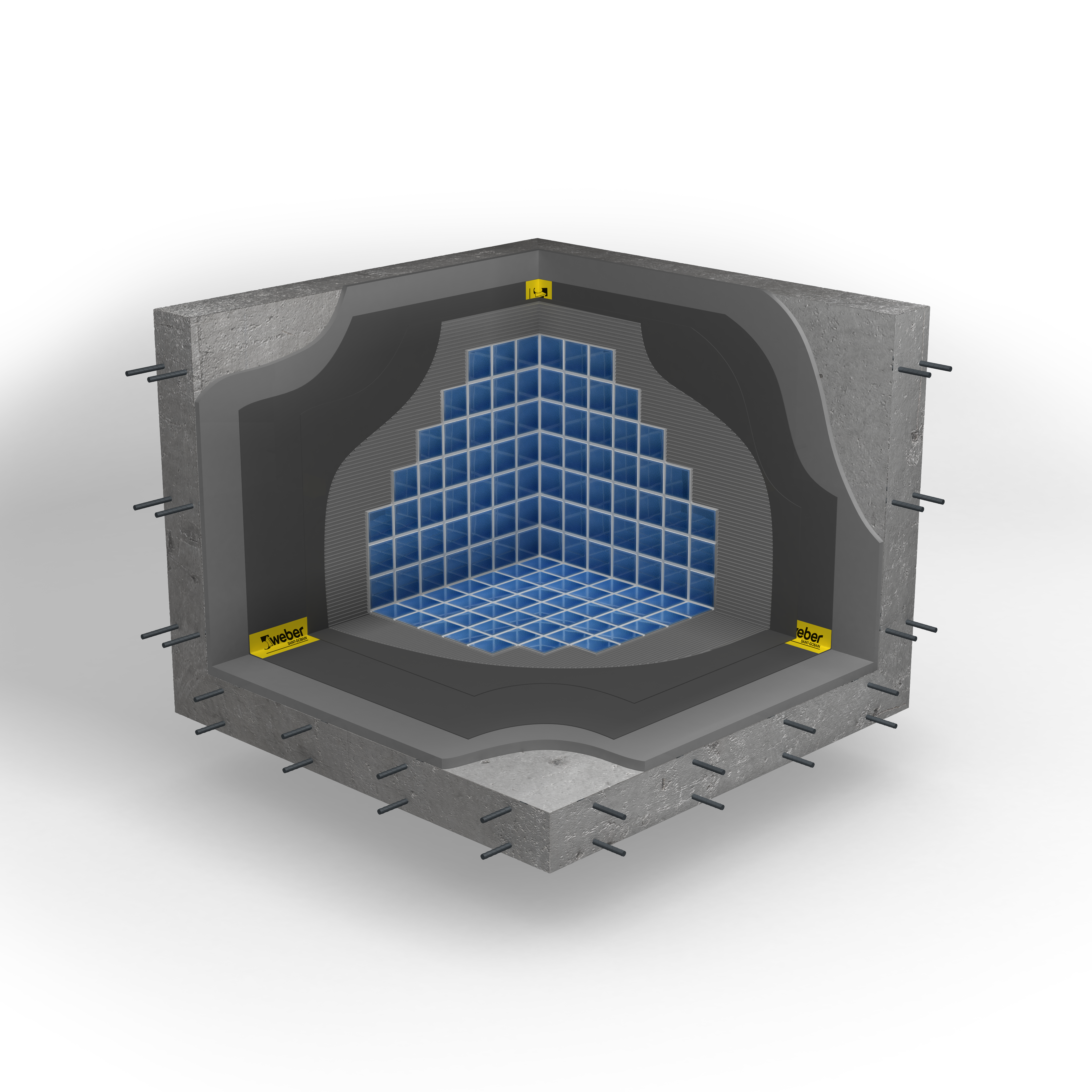

1 = Levelling : weberbase levelling plaster

2 = Waterproofing : weberdry top

3 = Waterproofing joints & corner : webertape BE14

4 = Waterproofing : weberdry top

5 = Tiling in swimming pool : webertai fix

6 = Grouting in swimming pool : webercolor HR

Add bookmark Find a distributor Consumption calculator

About this system

Pressure affects the pool structure will be divided into;

Water at positive pressure (caused by water in the pool )
Water at negative pressure (caused by water out of the pool, i.e. in-ground pool or pool constructed nearby water sources)

Therefore, the right installation of the waterproofing system is very necessary for the swimming pool. And waterproofing system should be separated thoroughly from its structure.

System build-up

Step 1

weberbase levelling plaster

Adjusted wall/floor level with weberbase levelling plaster

weberbase levelling plaster is pre-mixed cementitious mortar for adjusting wall level. Suitable for concrete, precast concrete, texca wall system and plastering substrates.

Know more about this product

Step 2

weberdry top

Apply 1st layer with weberdry top

2-component flexible waterproofing for any wet areas and swimming pools in high-rise buildings.

Know more about this product

Step 3

webertape BE 14

Seal the joint between floor and wall with webertape BE 14

Highly flexible and 100% waterproof
To cover joints between floors and walls
Use with flexible waterproof ; weberdry seal or weberdry top
To reinforce between boards of fiber-cement boards and gypsum boards
Resistant to hydrostatic pressure
Permanent resistant to tearing
Permanent resistant to many chemicals
Permanent resistant to frost
UV resistant

Reinforced highly-flexible waterproofing tape designed to use for stanching or expansion joints, for vertical and horizontal corners of floors and walls. Using together with weberdry seal and/or weberdry PUD coat and/or weberdry top and/or weberdry 2k flex to prevent/ to fix leakage problem

Know more about this product

Step 4

weberdry top

Apply 2nd layer waterproofing weberdry top

2-component flexible waterproofing for any wet areas and swimming pools in high-rise buildings.

Know more about this product

Step 5

webertai fix

Wait until weberdry top dry and prepare tiling process with webertai fix

High quality tile adhesive with double bonding strength

Know more about this product

Step 6

webercolor HR

Grouting with webercolor HR. Leave 3 days before filling with water for reaching high resistance property and good bonding

High resistance tile grout for swimming pools, spas, steam rooms, and saunas Providing resistance to water pressure and chlorine ideal for grouting in swimming pools, spas, saunas on both floors and walls

Know more about this product

Product Features

weberdry top:

To waterproof before tiling in any wet areas subjected to movement
Resist to water pressure up to 30 meters depth
Flexible, resist to micro cracking
Easy to use by rendering trowel
Resist to hard water and chlorinated water
Can be used with interior and exterior surfaces
Non-toxic
Low VOCs

Limitation

Not suitable to be used on brickwork, porous concrete.
Not suitable to be used on weak or friable substrates, where the substrate is cracked.
